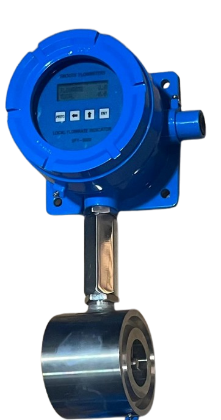

Wafer Series
Wafer Type Turbine Flowmeters
Wafer connection turbine flowmeters for compact and space-saving pipeline installations.
Wafer Series
Principle of Operation: The process fluid enters the wafer body and flows
through a precision-machined turbine rotor. The kinetic energy of the fluid causes the
turbine to rotate. The rotational speed of the turbine is directly proportional to the
volumetric flow rate. A magnetic pickup / Hall-effect sensor detects the turbine blades
passing through the magnetic field. Each blade passage generates a pulse signal. The
electronics convert the pulses into instantaneous flow rate and totalized flow.
CHARACTERISTICS
- Measuring range: 0.2 to 550 M3/Hr
- Media temperature: -40 … 150 °C
- Maximum pressure: …250 bar
Key Features
- Compact wafer construction for limited installation space
- High accuracy (±0.5% to ±1% of reading)
- Excellent repeatability (±0.05%)
- Low pressure drops
- Wide flow range 10:1, 20:1
- Robust SS 316
- High pressure and temperature capability
- Local flow indicator / transmitter options
- Pulse, 4–20 mA, RS 485 digital output
- Easy integration with PLC, DCS & SCADA

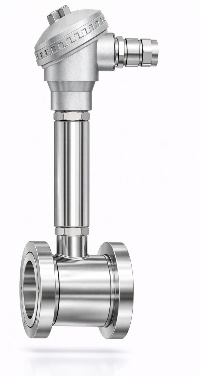

Wafer with Pulse Output
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

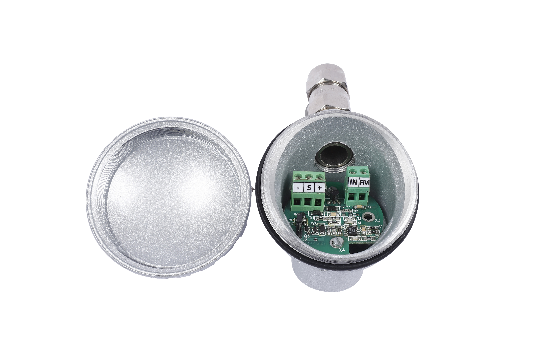

Pulse Transmitter
- Model – SPA – 10, SPA 100, SPA-1000
- SPA-10 – 2 Wire, 3 Wire PNP Pulse
- SPA-100 – Dual PNP Pulse
- SPA – 1000 - Dual PNP Pulse
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

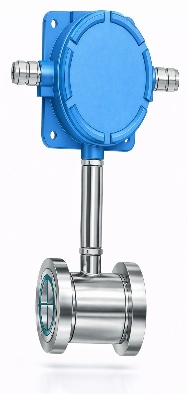

Wafer with Analogue Output
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

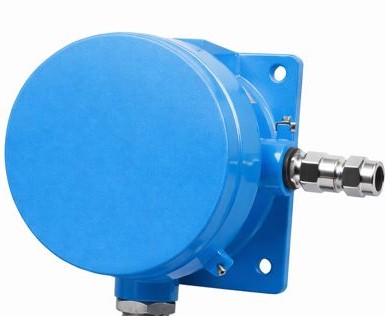

FI Current Transmitter
- Model – FI-8100, FI-8200
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC

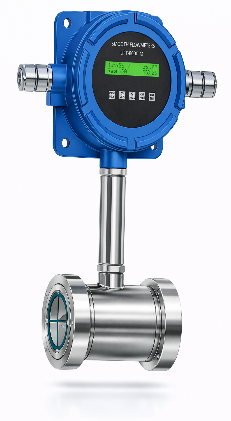

Wafer with Meter Mounted Battery-Operated Flow Indicator
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

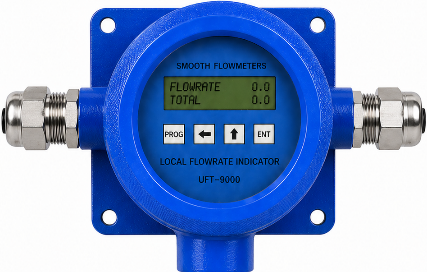

Meter Mounted Display Unit
- Model – UFT 9000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC & Battery Operated
Wafer with Meter Mounted Flow Indicator 24VDC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

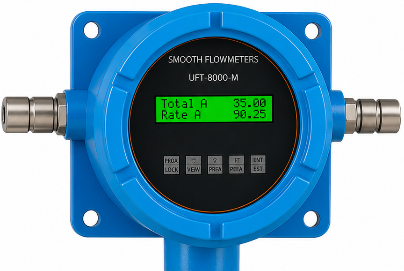

Meter Mounted Display Unit
- Model – UFT 8000
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 485
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 24 VDC
Wafer with Panel / Wall Mounted Flow Indicator 230VAC Operated
CHARACTERISTICS
- Measuring range Screw Type: 0.2 to 550 M3/Hr
- Media temperature: -30 … 150 °C
- Maximum pressure: … 300 bar

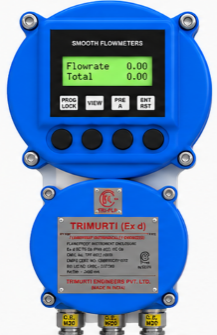

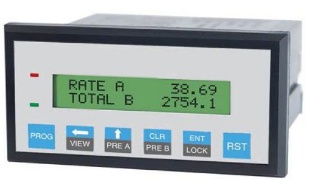

Panel / Wall Mounted Display Unit
- Model – FRT 7000 / UFT 8000-P
- Output – 4-20mA, 0-10VDC
- Serial Communication – RS 232
- Enclosure – IP 66, PESO, ATEX
- Power Supply – 230 VAC or 24 VDC
Datasheet Download
Download the product datasheet for technical specifications.
Wafer Series Datasheet
Download the datasheet for this product.
Industry-wise Applications
1.
Food & Beverage Industry
- • Milk, juice, soft drinks, edible oil, and syrup transfer
- • Accurate batching and flavor dosing
- • Hygienic construction to prevent product contamination
- • Smooth, easy-to-clean sanitary flow paths
2.
Pharmaceutical Industry
- • Purified Water (PW) and Water for Injection (WFI)
- • Liquid medicines and solvent measurement
- • Strict compliance with international hygiene standards
- • Full compatibility with CIP and SIP cleaning processes
3.
Biotechnology Industry
- • Nutrient media flow and buffer solutions
- • Fermentation process liquids monitoring
- • Gentle flow measurement without product degradation
- • High-precision sterile operation environment
4.
Dairy Industry
- • Raw milk collection and high-speed processing lines
- • Cream, whey, and yogurt lines measurement
- • Supports automated batching controls
- • High resistance to aggressive chemical wash cycles
5.
Cosmetic & Personal Care
- • Liquid soaps, shampoos, and conditioners dosing
- • Low-viscosity lotions and creams filling lines
- • Smooth internal finish to prevent product residue
- • Extremely consistent dosing and filling accuracy
6.
Chemical (Hygienic) Industry
- • High-purity alcohols and clean solvents measurement
- • Specialty chemical flow monitoring in batch plants
- • Highly accurate measurement of low-viscosity liquids
- • Corrosion-resistant SS316/SS316L body construction
7.
Brewery & Distillery Industry
- • Brewing water, wort transfer, and alcohol measurement
- • Extremely high accuracy for production consistency
- • Simple, thorough cleaning between production batches
- • Compact design suitable for modern modular skids
Common Construction Options
Common Construction Options
- Body materials: SS316
- Connections: Wafer Type
- Rotor – ANC 21, Duplex SS
- Bush – TC & SS Ball Bearing
- Shaft - TC & Duplex SS
- Pick Off Sensor – Magnetic and Hall Sensor
- Outputs: Pulse, 4–20 mA, Modbus, Display-integrated or Remote
- Sizes: From ¾” to 6” (and higher for special designs)
Selection Tips
When choosing an inline turbine flowmeter, consider the following process data:
- Fluid type & viscosity
- Flow range (min/max)
- Operating pressure & temperature
- Required accuracy
- Output signal / integration needs
Advantages of Wafer Turbine Flowmeters
- Compact wafer-type design for easy installation
- High accuracy flow measurement
- Low pressure drop across the meter
- Suitable for clean and low-viscosity liquids
- Durable construction for industrial environments
- Fast response for dynamic flow conditions
